Customizable Size Macropad/Keyboard PCB

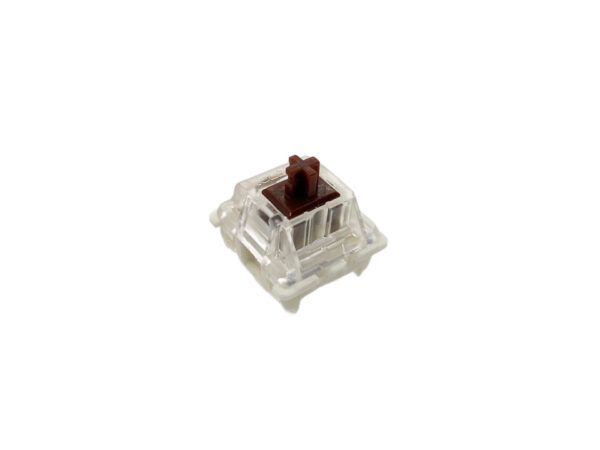

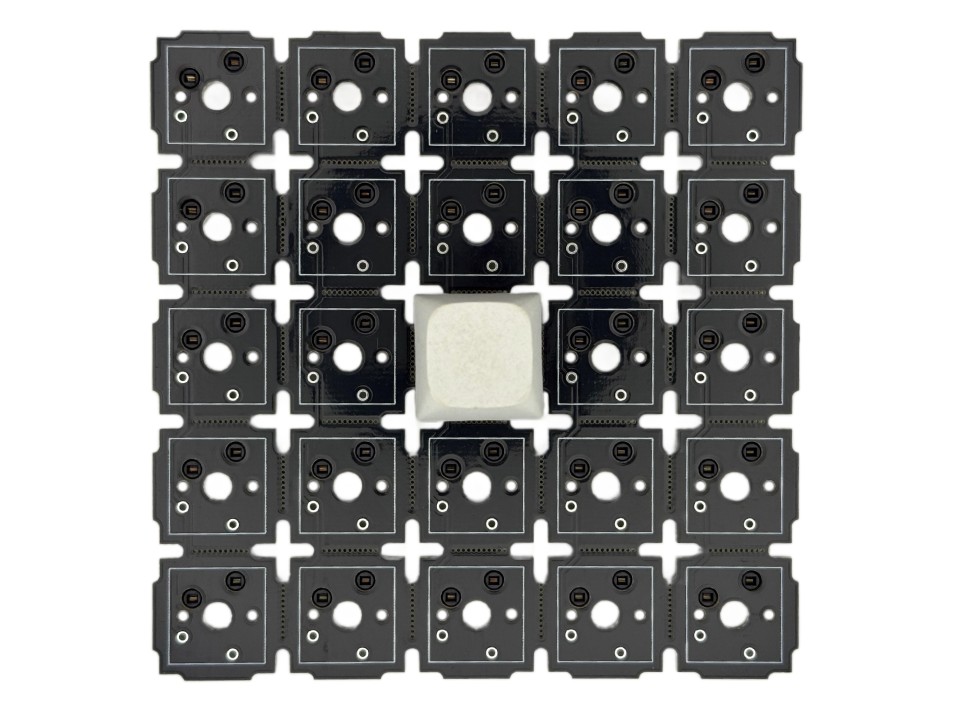

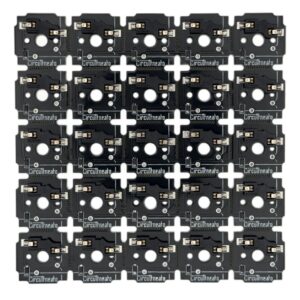

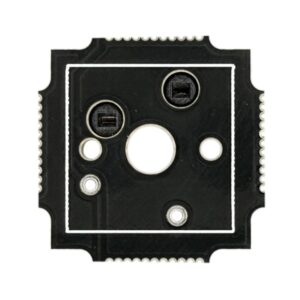

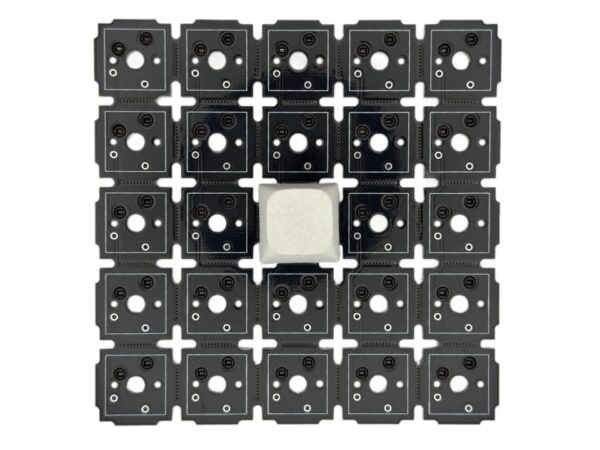

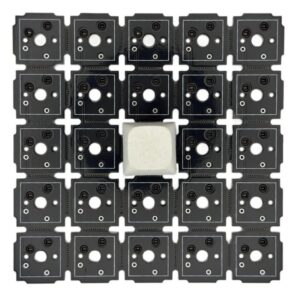

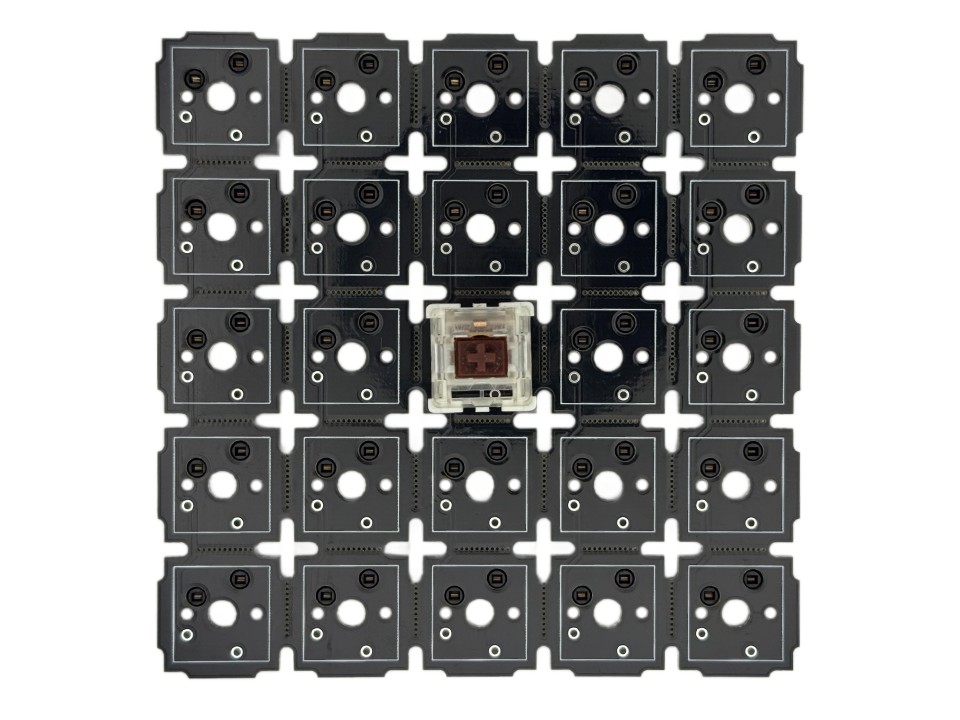

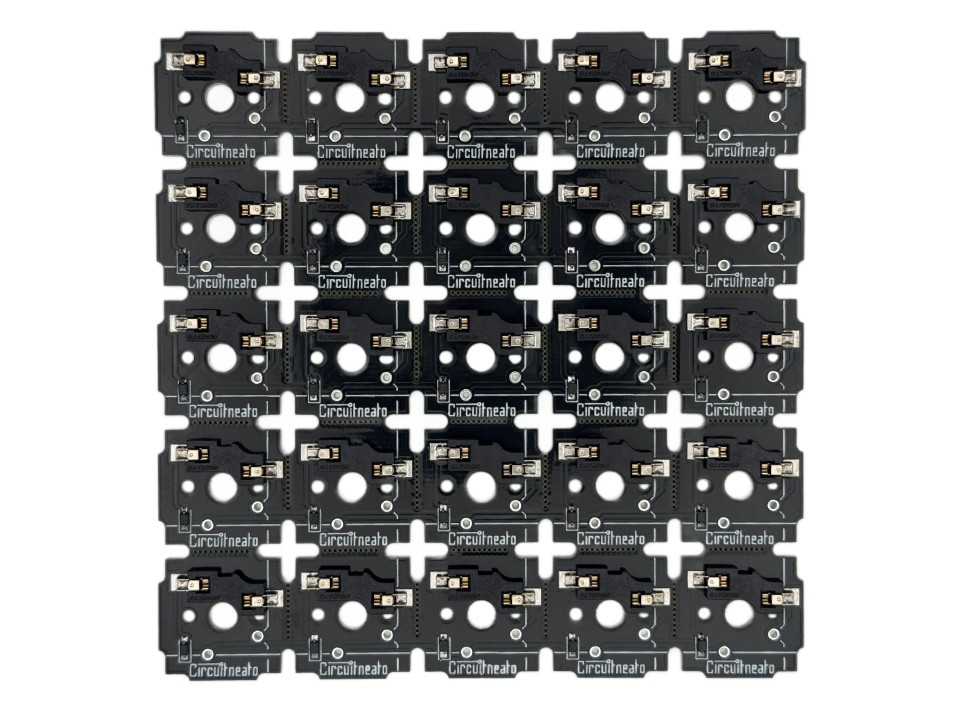

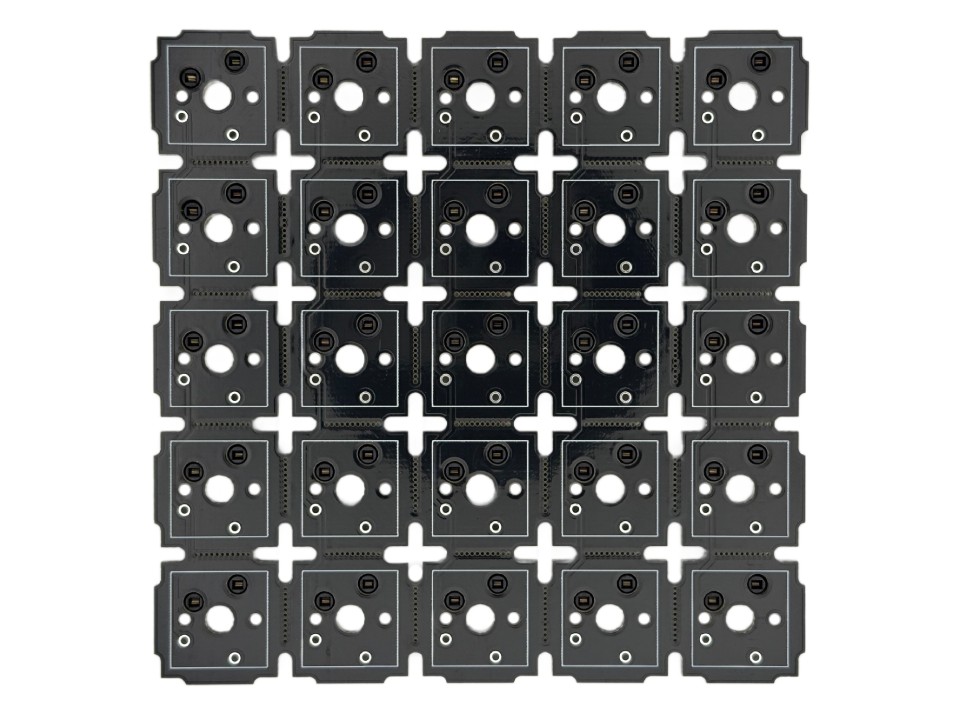

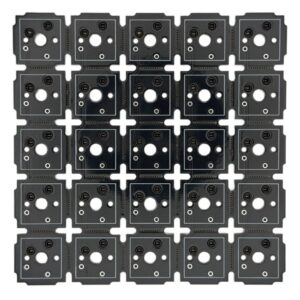

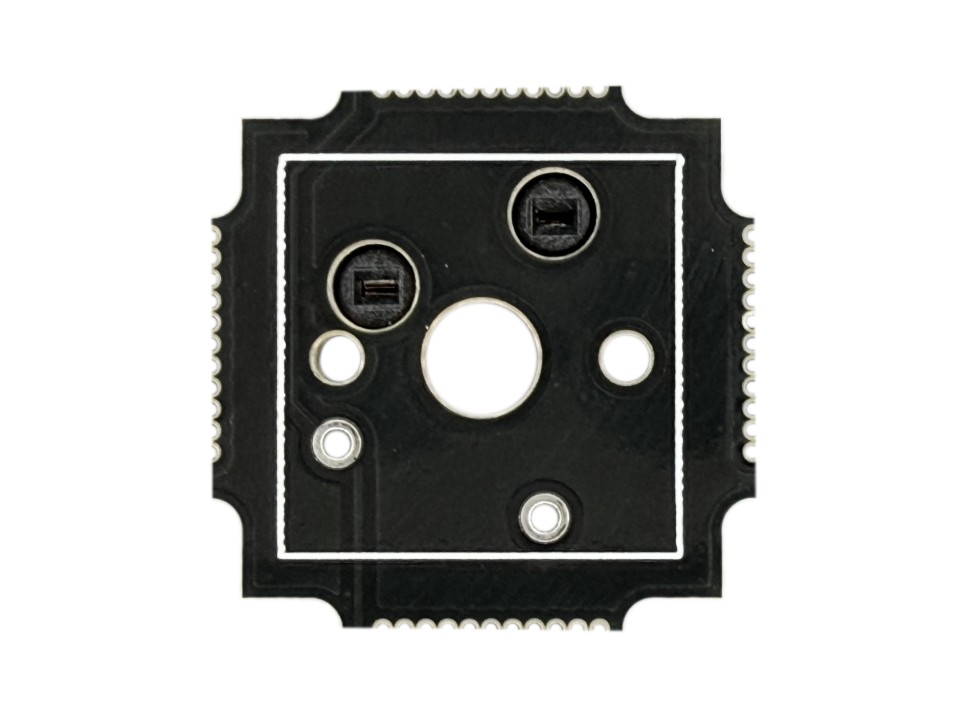

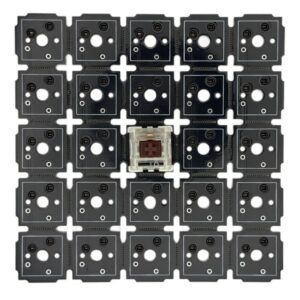

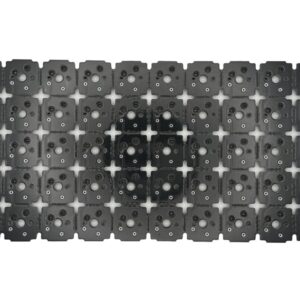

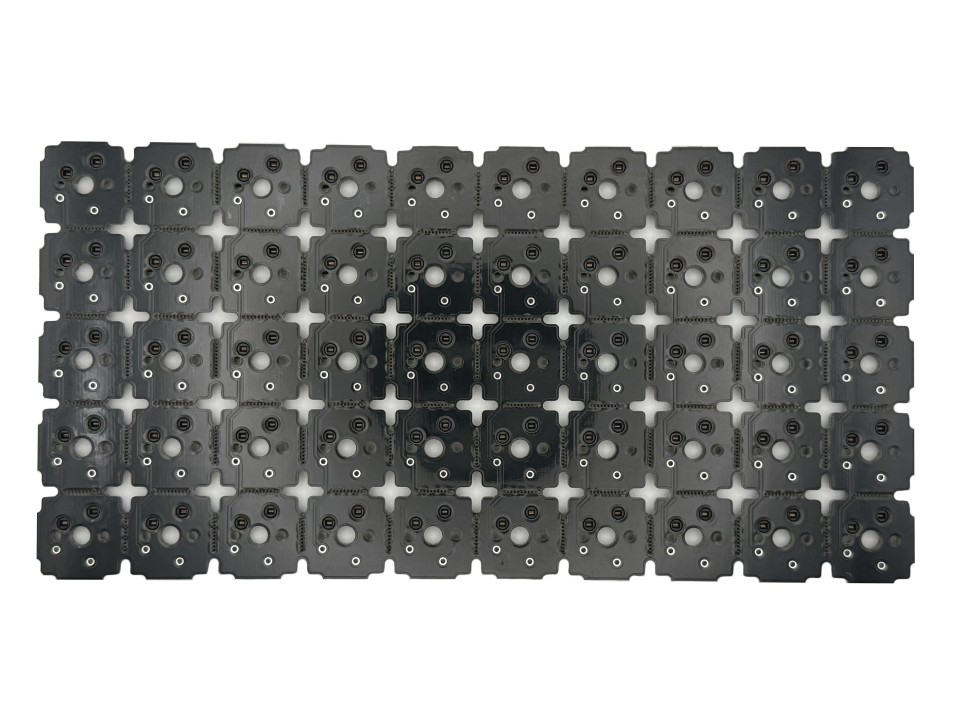

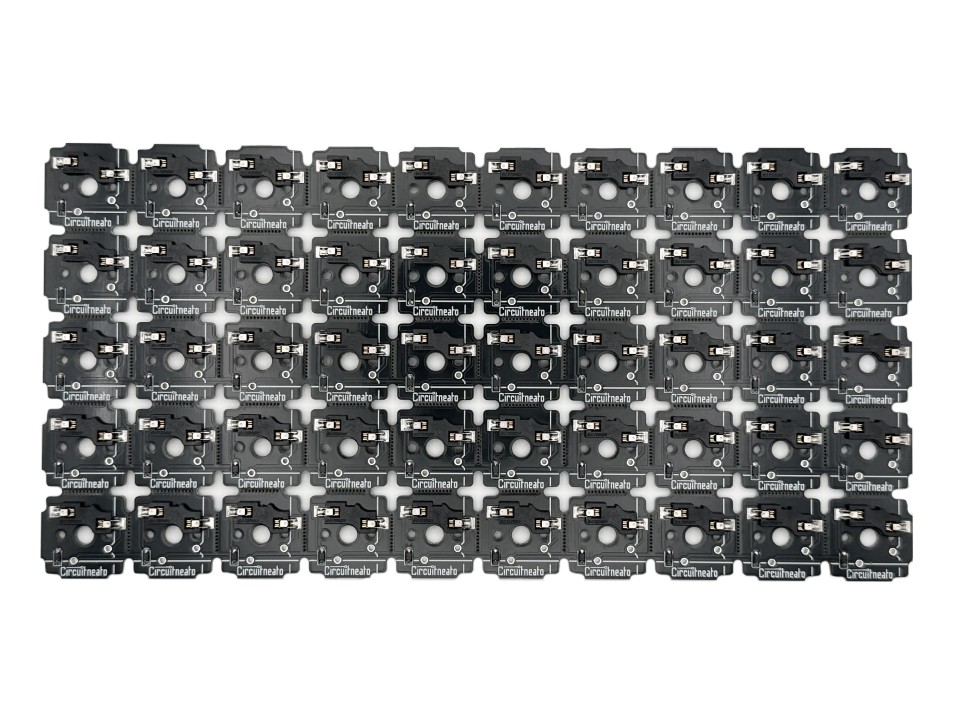

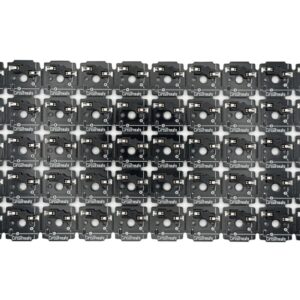

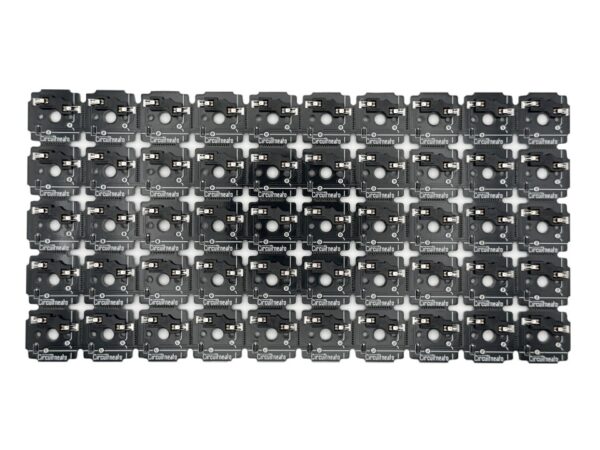

This is a customizable size macropad/keyboard PCB for handwired macropads. It can handle 3 pin and 5 pin MX style mechanical switches. You can order any size up to 5 by 10 (5 Rows, 10 Columns) and skip the long shipping times that you get from ordering fully custom boards. It comes with Gateron hot-swap sockets, matrix diodes, and includes a THT pad for every keyboard matrix point. This board pairs well with our STM32 Keyboard Controller or STM32 Macropad Controller to be able to make fully functional handwired keyboards and macropads. You can also fit M2-M3 screws in the + groves between each of the switches for mounting.

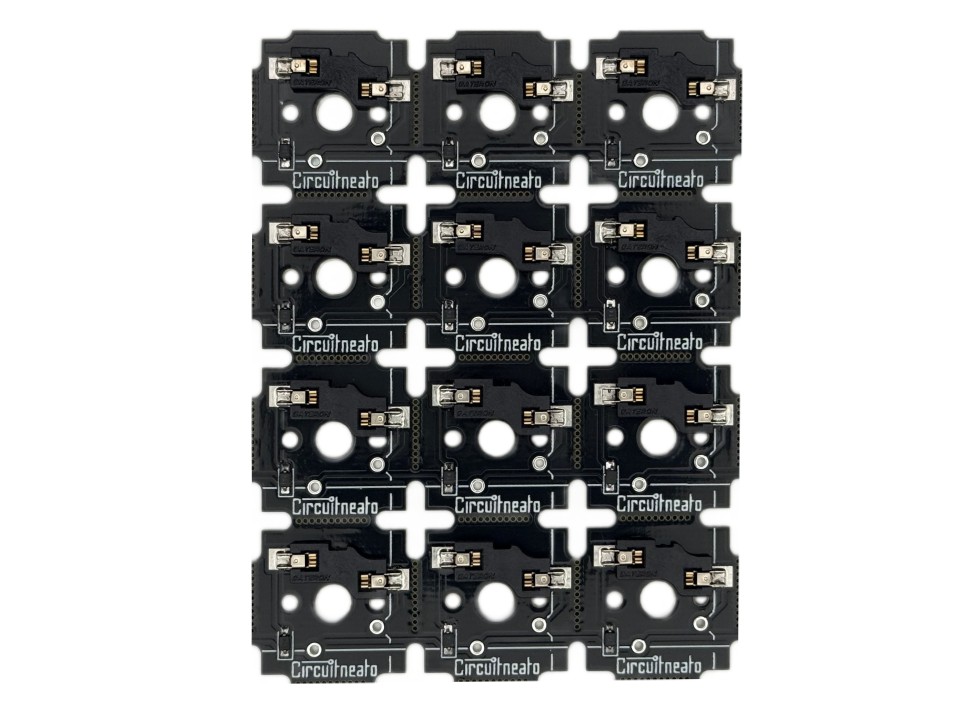

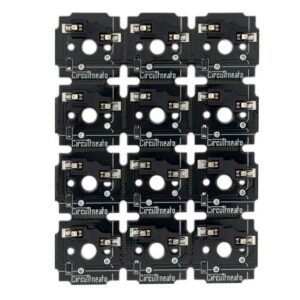

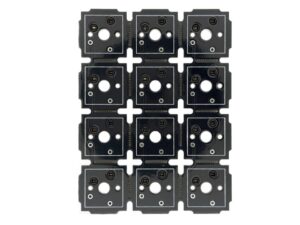

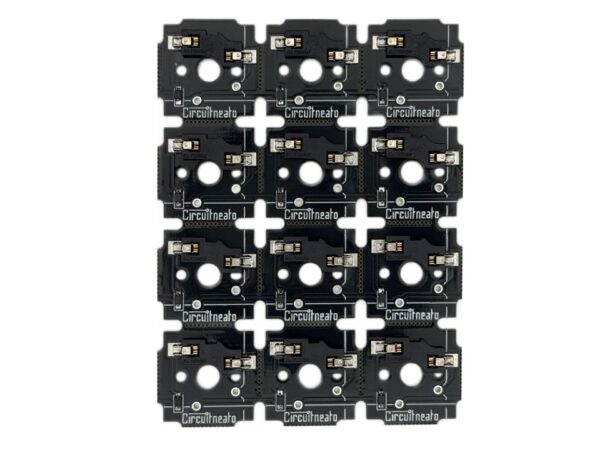

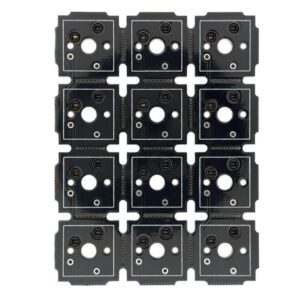

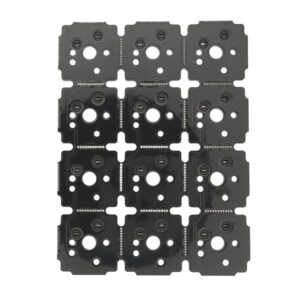

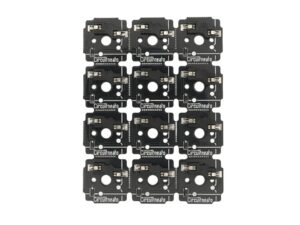

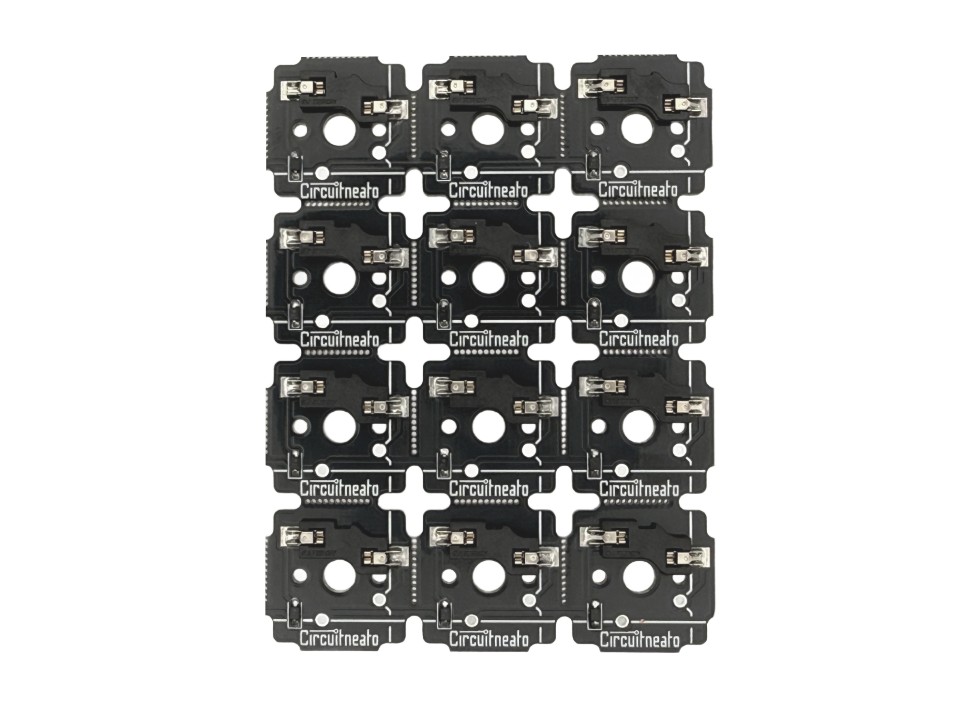

How to order: Simply choose how many rows and columns you need for your keyboard/macropad. For example, if you choose 4 rows and 3 columns, your PCB will look like this:

Latest revision added small cuts between the boards to make them slightly easier to snap apart, otherwise identical in design and functionality.
