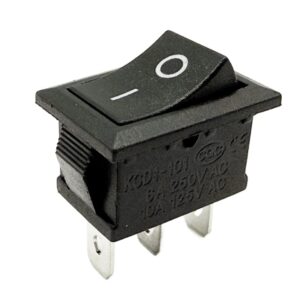

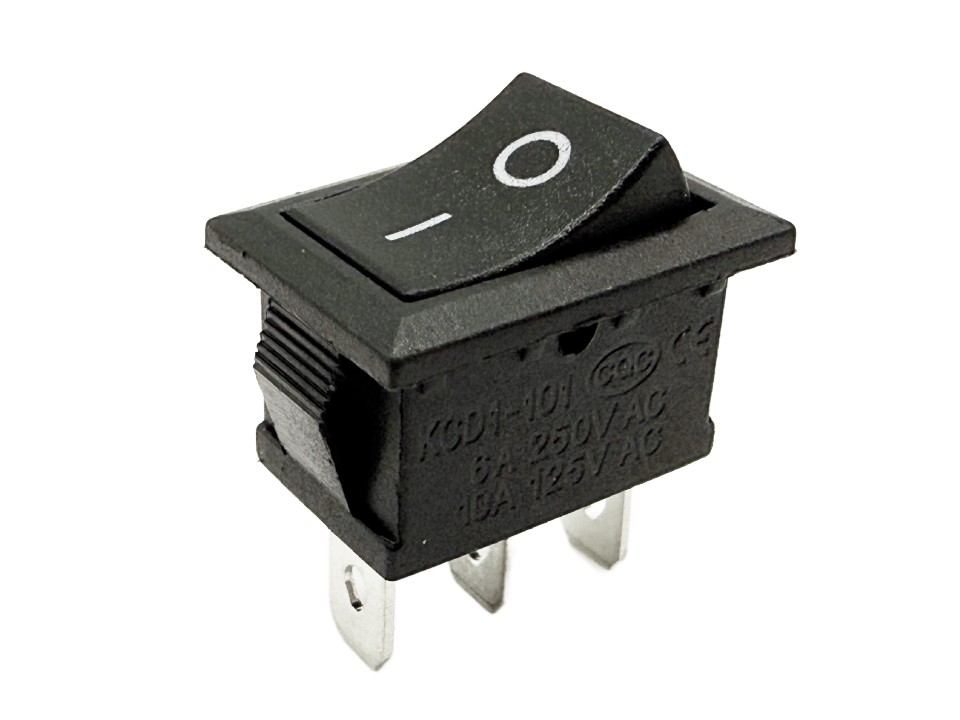

Rocker Switch SPDT
Product Overview
This is a great and versatile on/off switch for many of your projects. It is SPDT (single pole double throw) which means there is one common terminal and two separate output terminals. It is rated for 10A at 125V, or 6A at 250V, and can be snap-in panel mounted in a 19mm x 12.5mm rectangular hole, no hardware required.

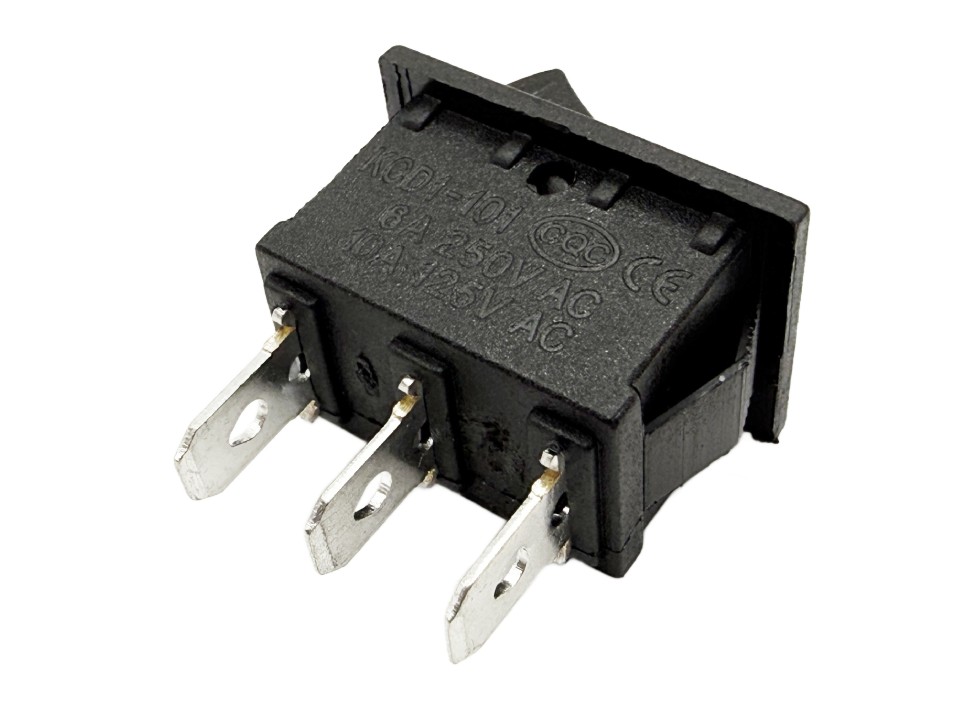

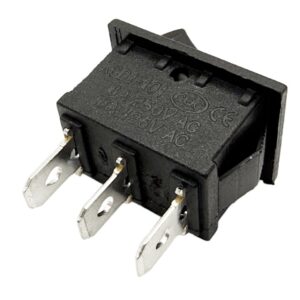

The terminals fit 4.8mm / 3/16″ spade connectors. The middle terminal is the common terminal, and the two on either side are the output terminals. If the switch is pushed down on the O/circle, the output terminal that is connected to the common will be on the opposite of the side it is pushed down on. If the switch is pushed down on the line side, the output terminal that is connected to the common will now be on the opposite side from the side it is pushed down on.
Product Features
- SPDT
- 10A max at 120V
- 6A max at 250V
- Can be snap-in panel mounted
- 4.8mm / 3/16″ spade terminals

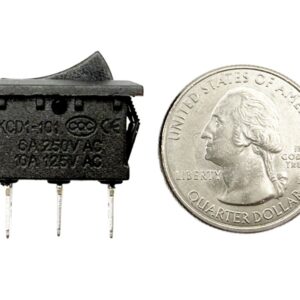

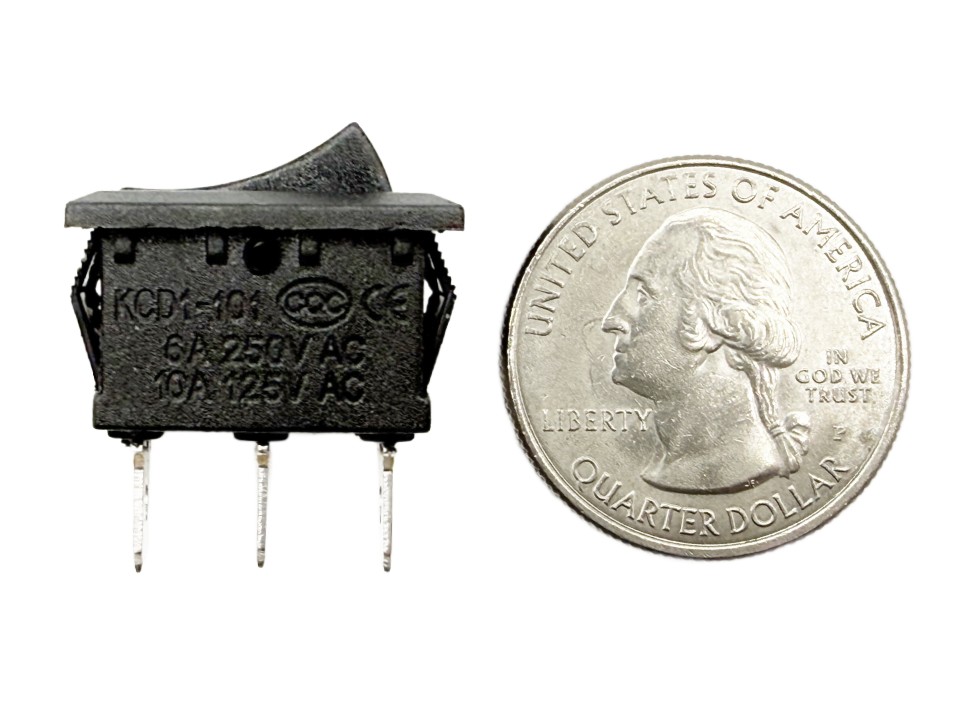

- Face dimensions: 0.82″ x 0.59″ / 20.9mm x 15mm
- Height from spade connectors to face plate: 0.85″ / 21.7mm
