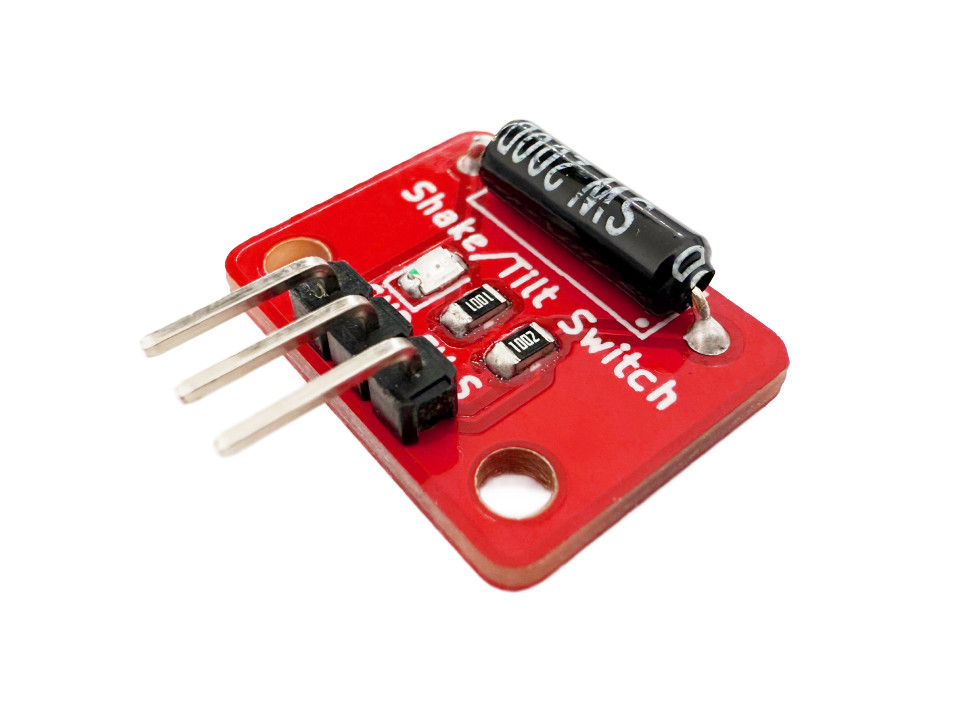

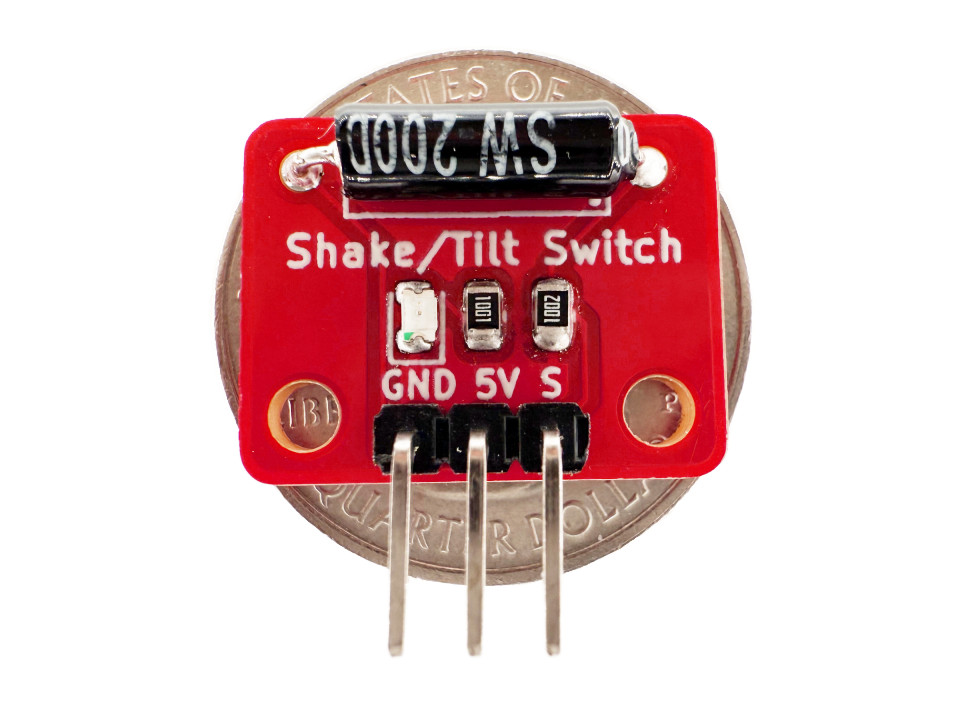

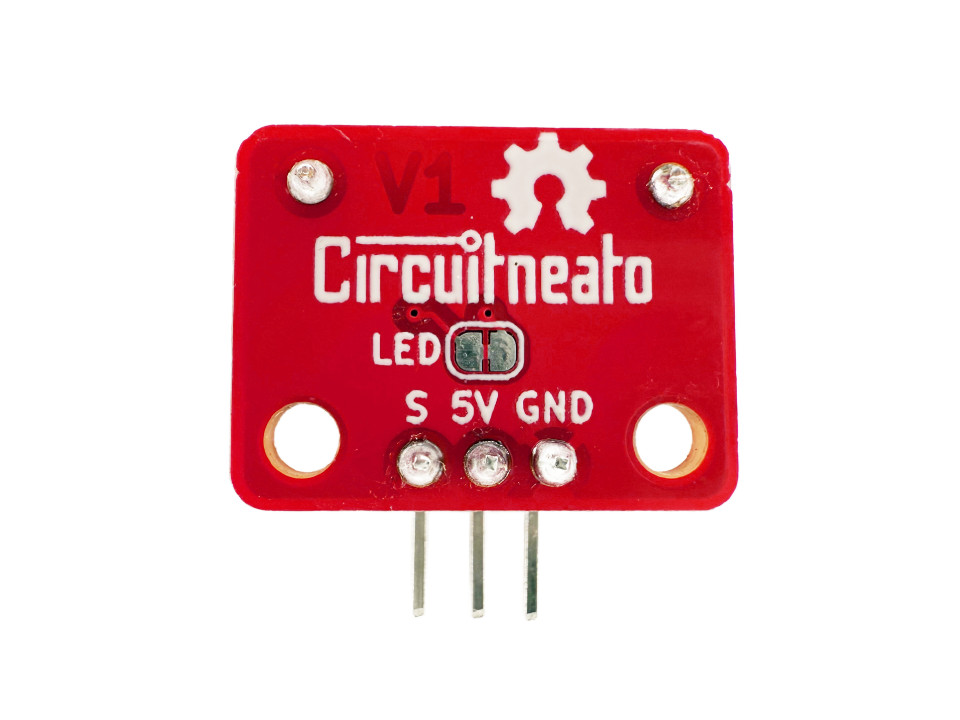

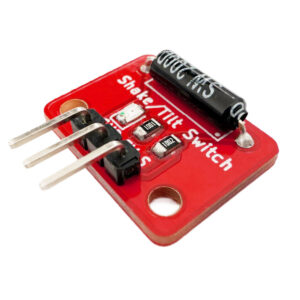

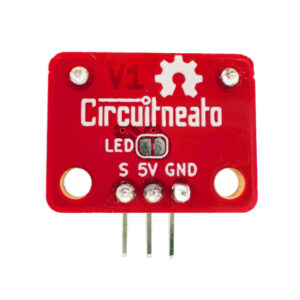

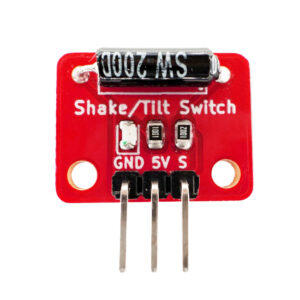

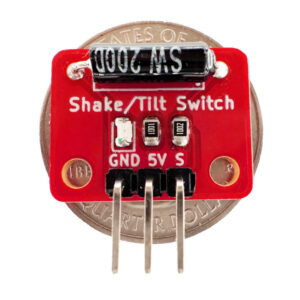

Shake/Tilt Switch Module SW-200D
Product Overview

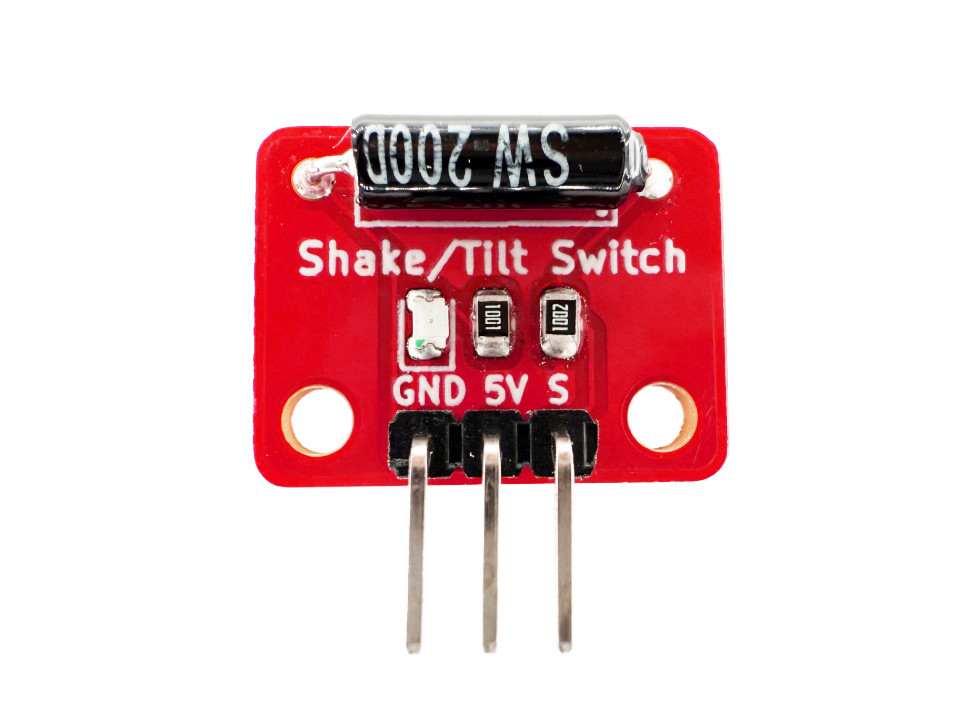

This module is great for detecting basic orientation and motion. There is a built in pull-down resistor and a status LED for easy incorporation into your projects. To use, simply connect 3.3V-12V to the 5V pin, GND to the GND pin, and a digital or analog I/O pin from your microcontroller to S.
When the module is tilted to the right, the LED will glow and the S pin will be shorted to VCC (5V pin). When the module is tilted the other way, the S pin will stay pulled down to GND. Note that this tilt switch module should only be used with low current logic signals (about 20mA), and not with high power switching.
Product Features
- 10° sensitivity range
- Status LED
- 12V, ~20mA Max
- 2 mounting holes
