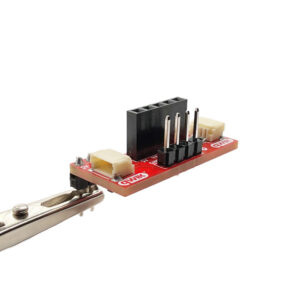

QWIIC UNO Adapter

Product Overview

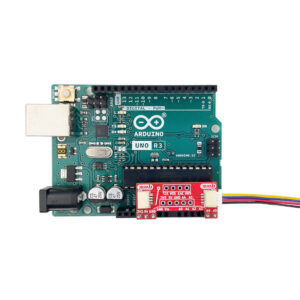

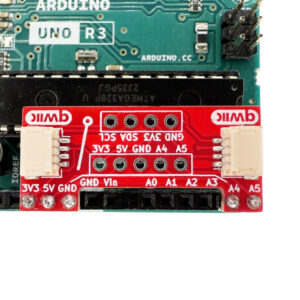

The QWIIC UNO adapter is the simplest and cleanest way to add QWIIC ports to your Arduino UNO! There is no hassle, no need to break out a logic converter, breadboard, and DuPont wires, as It combines all of these into one board. It plugs directly into the needed female pins (A5, A4, GND, 5V, and 3.3V) and uses onboard voltage converters to turn 5V I²C into 3.3V I²C to use with the QWIIC connectors.

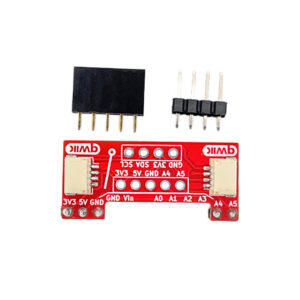

Ordering notes: This listing will come with all pins including the female and male Arduino and QWIIC breakout pins, but only the 5 pins that plug in to the Arduino will be soldered. This option is available if you want the adapter to stay low profile. This listing will come with all these male and female pins soldered on.

More information for the QWIIC UNO adapter here!

Features

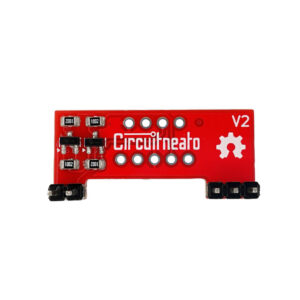

• Onboard voltage converters (BSS138)
• 5 Pins used are broken out to optional headers

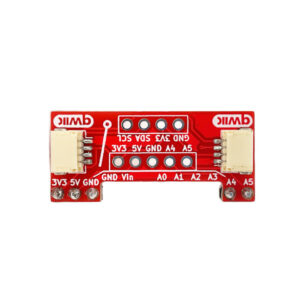

• Silkscreen markings for pins

Documentation

• Tutorial
• Schematic
• PCB Files
• BSS138 Datasheet
