Product Overview

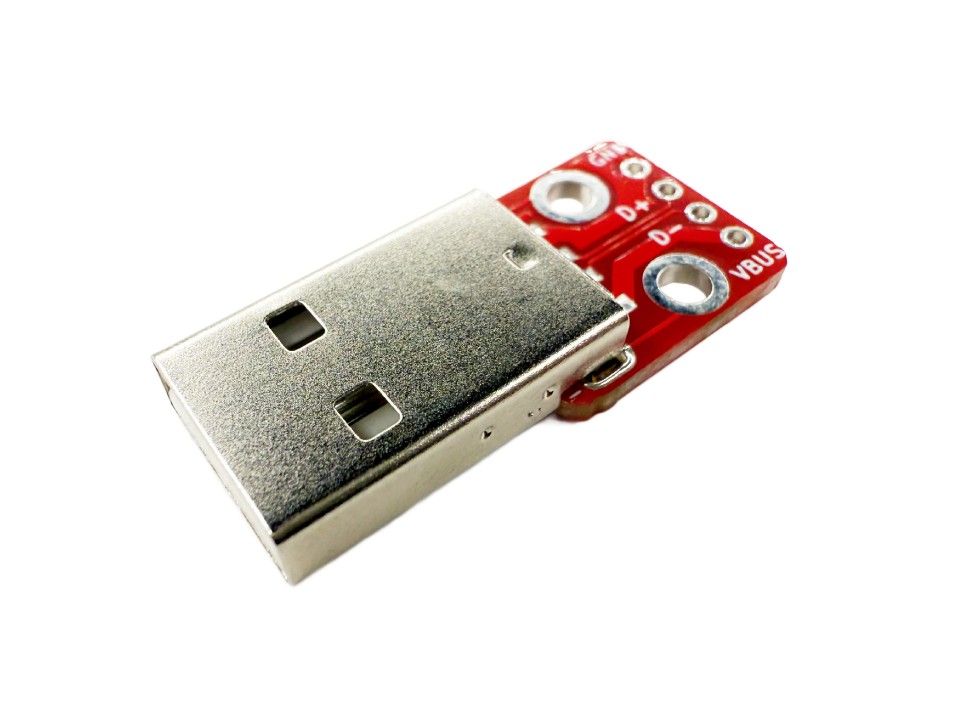

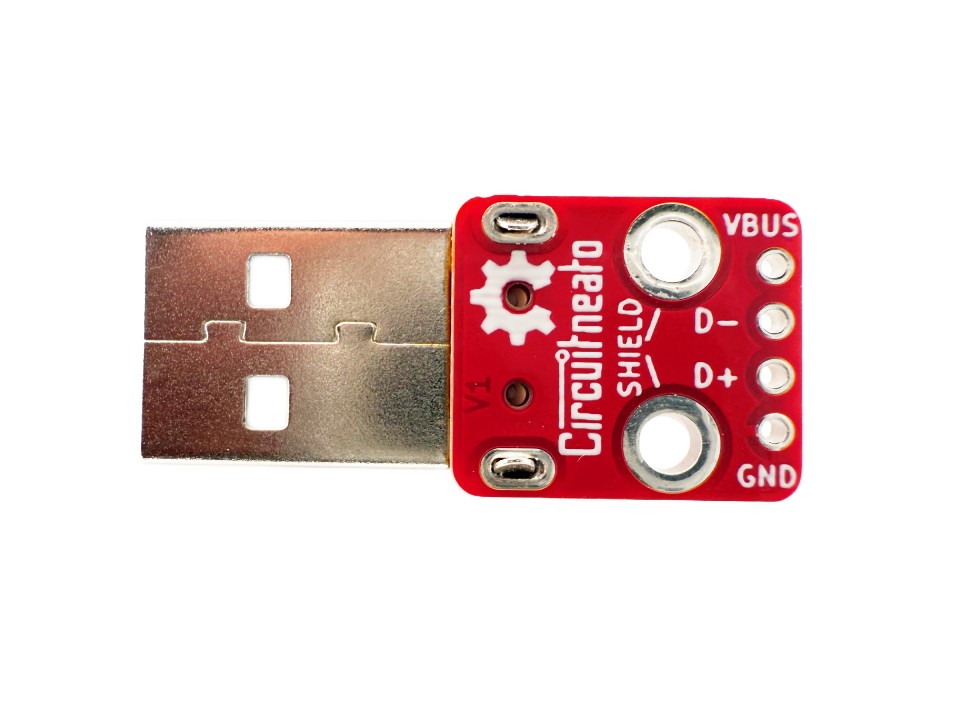

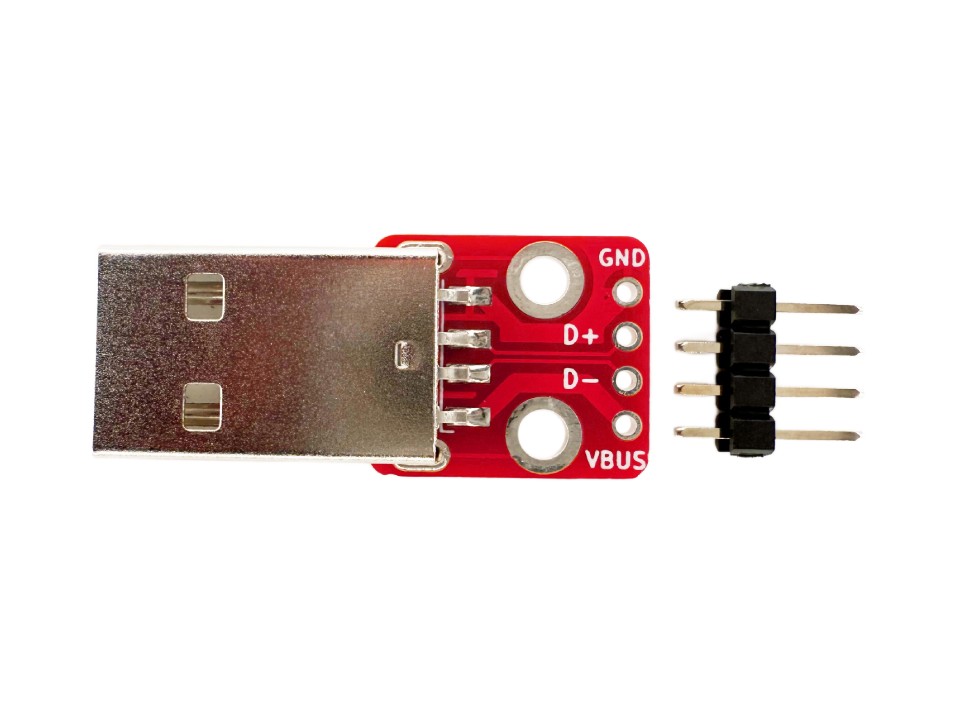

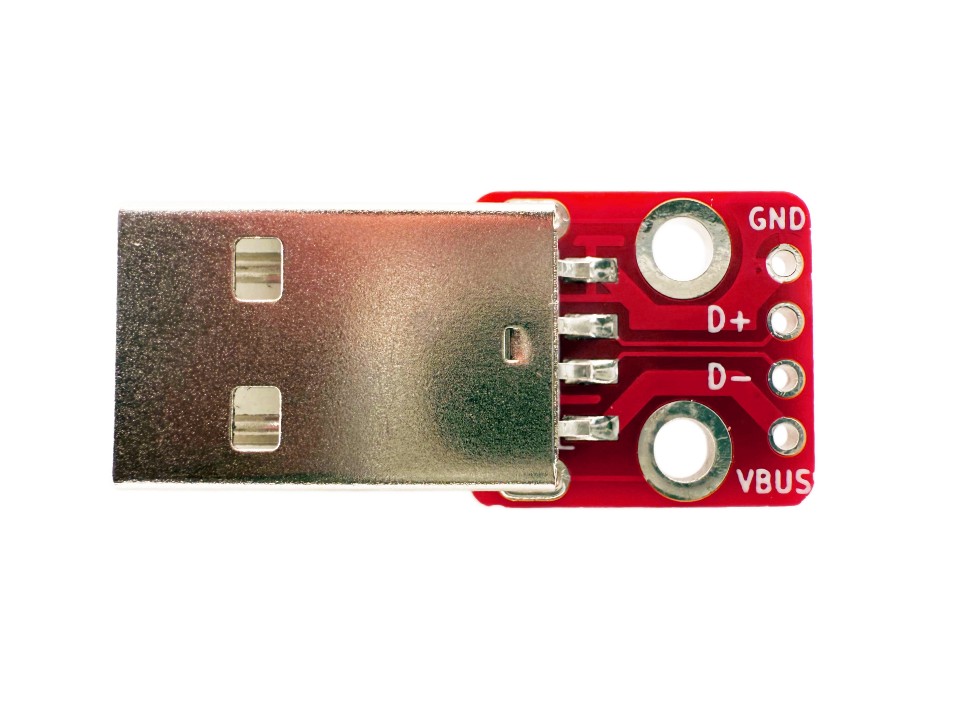

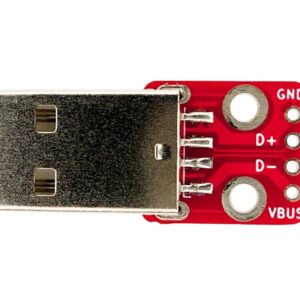

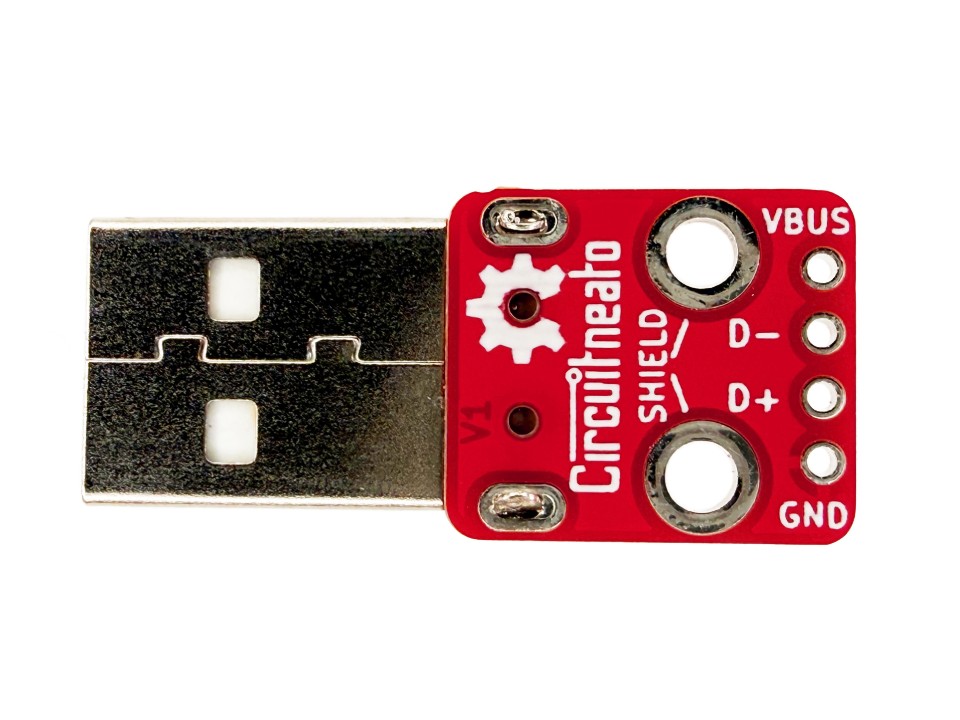

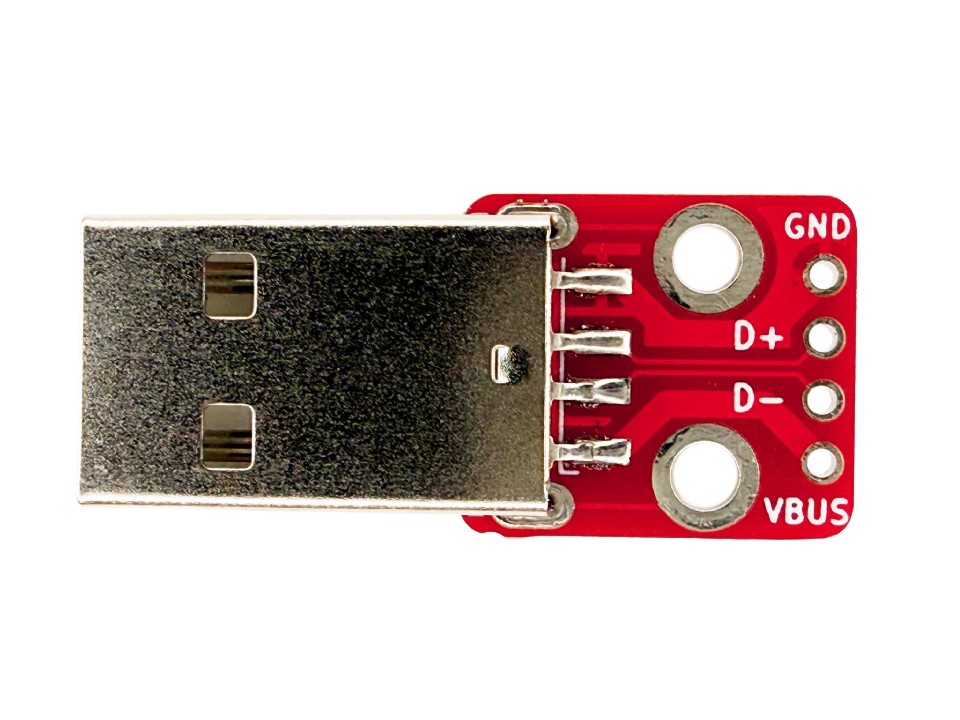

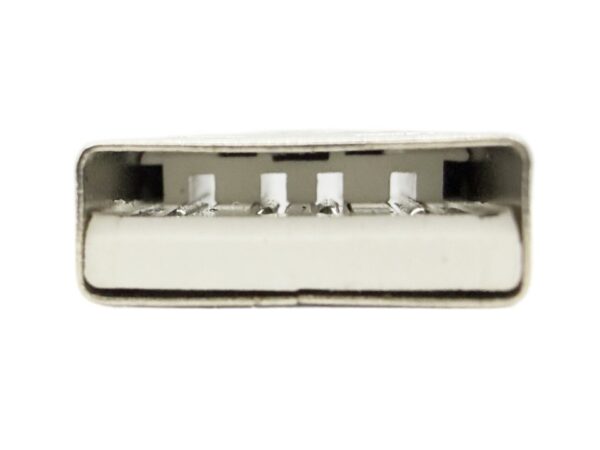

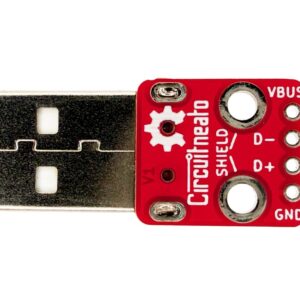

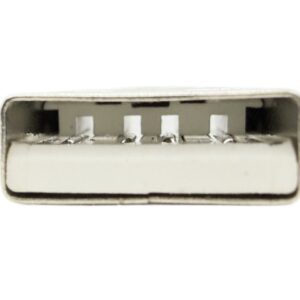

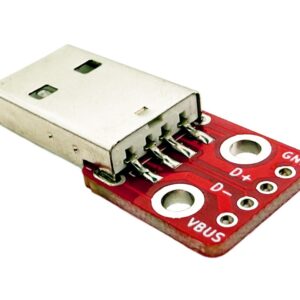

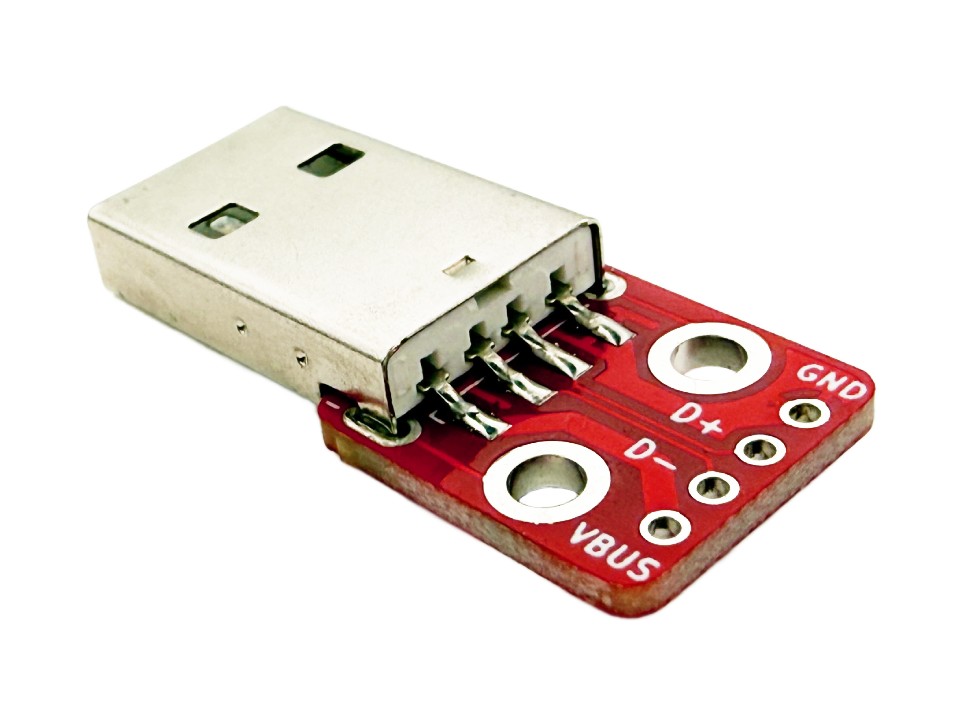

If you need to add a quick and easy USB plug to your project, this is the board for you. It breaks out each pin of a male USB-A connector to 2.54mm (0.1″) header pins for easy prototyping and incorporation into your projects. You can access both power and data pins (VBUS, D+, D-, and GND) including the connector’s shield which is electrically connected to both mounting holes. The board and port are cable of outputting up to 1.5A.

Features

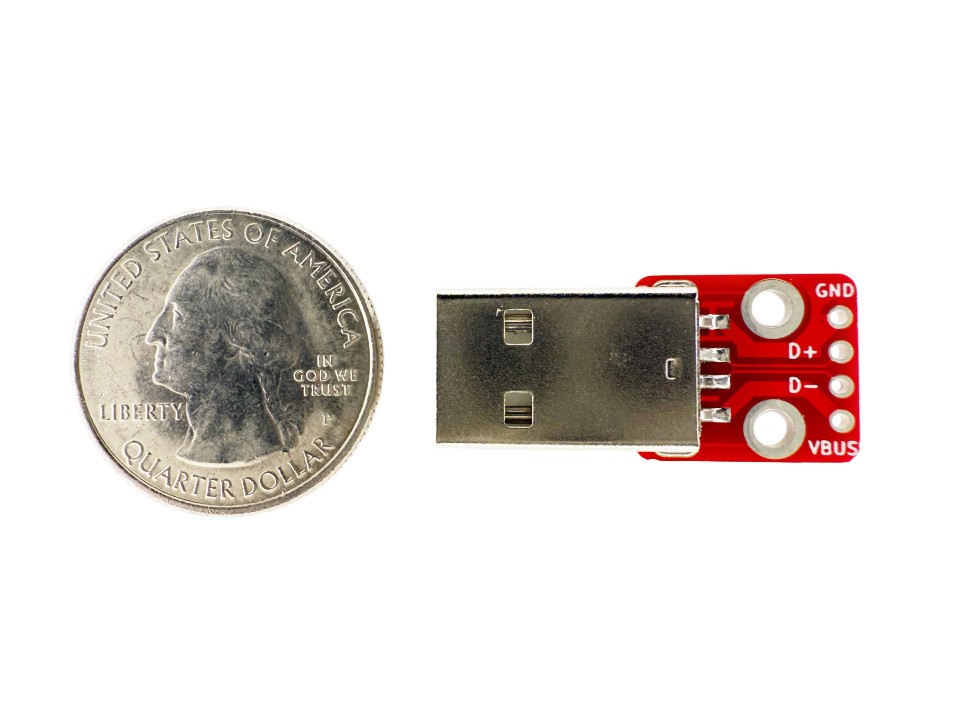

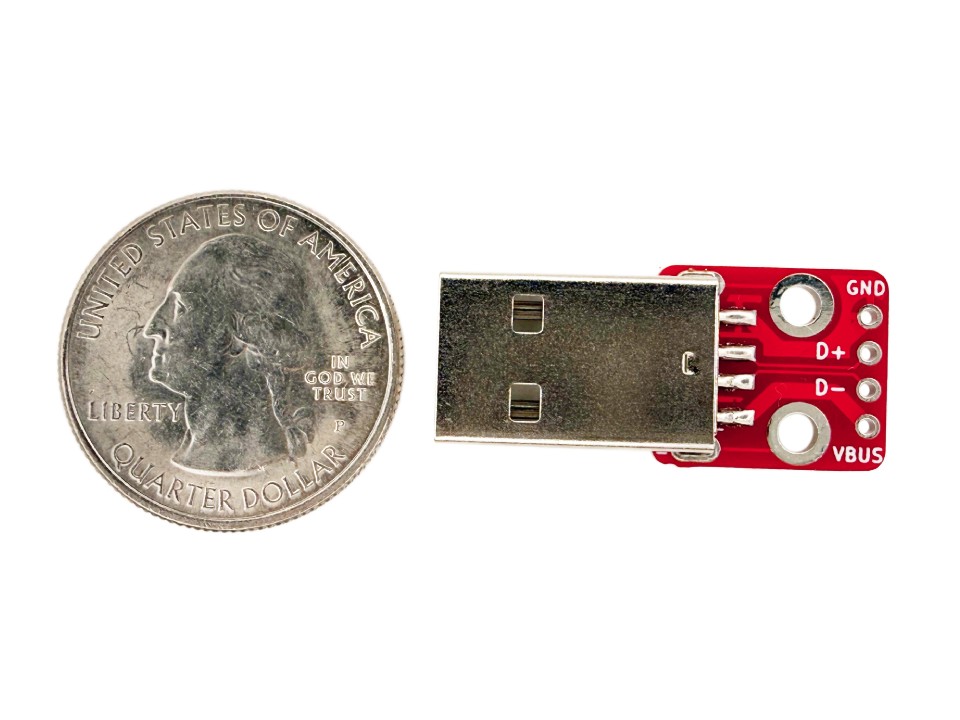

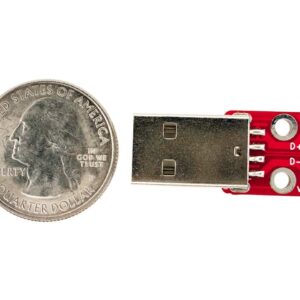

• Dimensions: 1.2″ x 0.6″ x 0.2″ / 31mm x 14mm x 5mm

Documentation

• Schematic
• PCB Files
